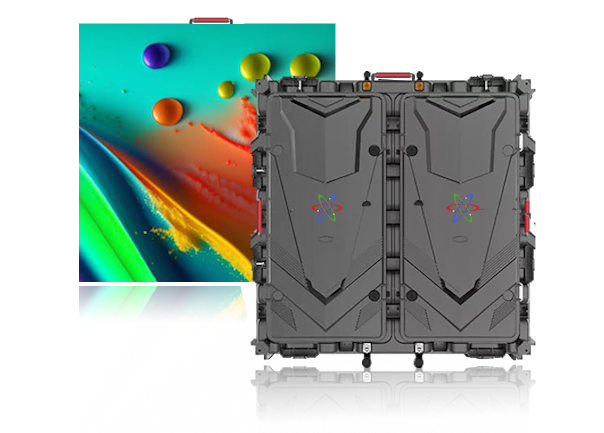

P5 Outdoor Led Ekran
P5 Outdoor Led Ekran Detaylar:
Sabit kurulum ve kiralamalar dahil, iç mekan ve dış mekan led ekran projelerine göre uygulanabilmekterdir.Pixel Pitch : P5
High Refresh Rate : >3840Hz
High Brightness : 5000Nits
Cabinet Size : 960mm x 960mm
Refresh Rate>1920Hz
Front / Back ServicesBack Services
Weight / m2<28
LampClass A
EntegredChipone or Smilar
PowersupplyMeanwell or Smilier
ControllerNovastar
Pixel ConfigurationSMD1921
Grey Scale>65536
Weight Per Panel Net kg.<25kg.
Cabinet Resolution192px x 192px
Pixel Density / Cabinet36864
IP RatingBack IP54 / Front IP67
Others Specifications:
Driving IC TypePWM
Refrate Quality 2High Refresh
No Waterless Ripple of Camera>%75
Driving Method '' Scan ''1/8 Scan
Resolution/SQM200 x 200
Pixel Density / m240000
White Color Calibration (Adj.)3.500K~8.500K
Horizontal Viewing Angle140 (±30)
Vertical Viewing Angle140 (±30)
Rotation per 90 DegreeOptional
Free Rotation (with R5)Optional
Clear ViewOptional
Refresh QualityHigh Quality
Expected Led Lifetime %50>100.000 Hors
Operating Temperature Range-15 – +45 (±10)
Operating Humidity Range-40℃～+60℃,10%-90%RH (+-10)
Power on Time w/sqm900W
Power Consumption (w/sqm)750W
Average Power Consumption (w/sqm)300W
Voltage Range47 ~ 63Hz / 110 ~ 240 VAC
Packing includePlate-Power-Cat5 Standart Cable
Usage AreaAuditorium, Concert Area , Advertisement, Shopping Center, Scoreboard & Totem
